Anti-shock Test X-ray Inspection Security Screening Equipment for Airport

Product Categories
SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Anti-shock Test X-ray Inspection Security Screening Equipment for Airport

Place of Origin : China

Brand Name : SECUSCAN

Certification : ISO,CE

Model Number : AT6550

Port : Shenzhen

MOQ : 1

Price : Negotiable

Packaging Details : Wooden Packing

Delivery Time : 7 days when we have stock,15 days when we have no stock

Payment Terms : L/C,T/T

Supply Ability : 300 sets/month

Contact Now

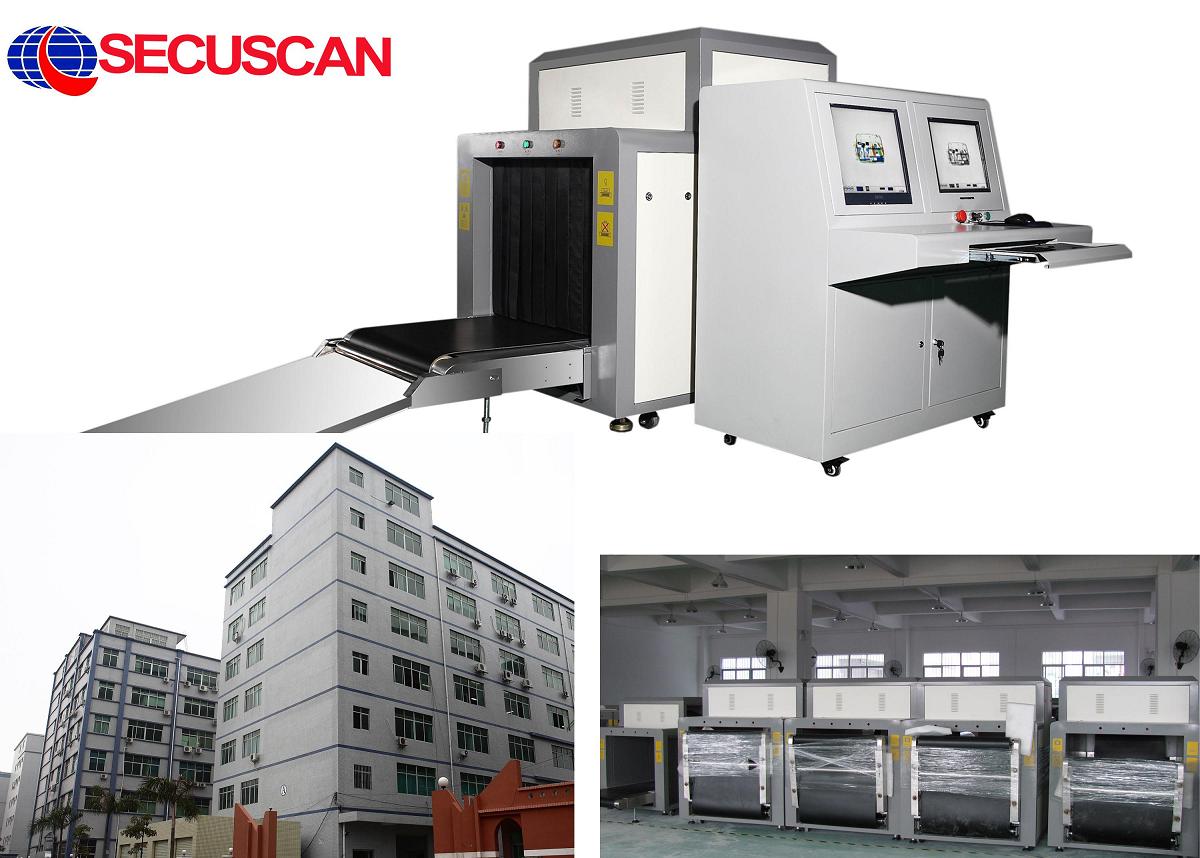

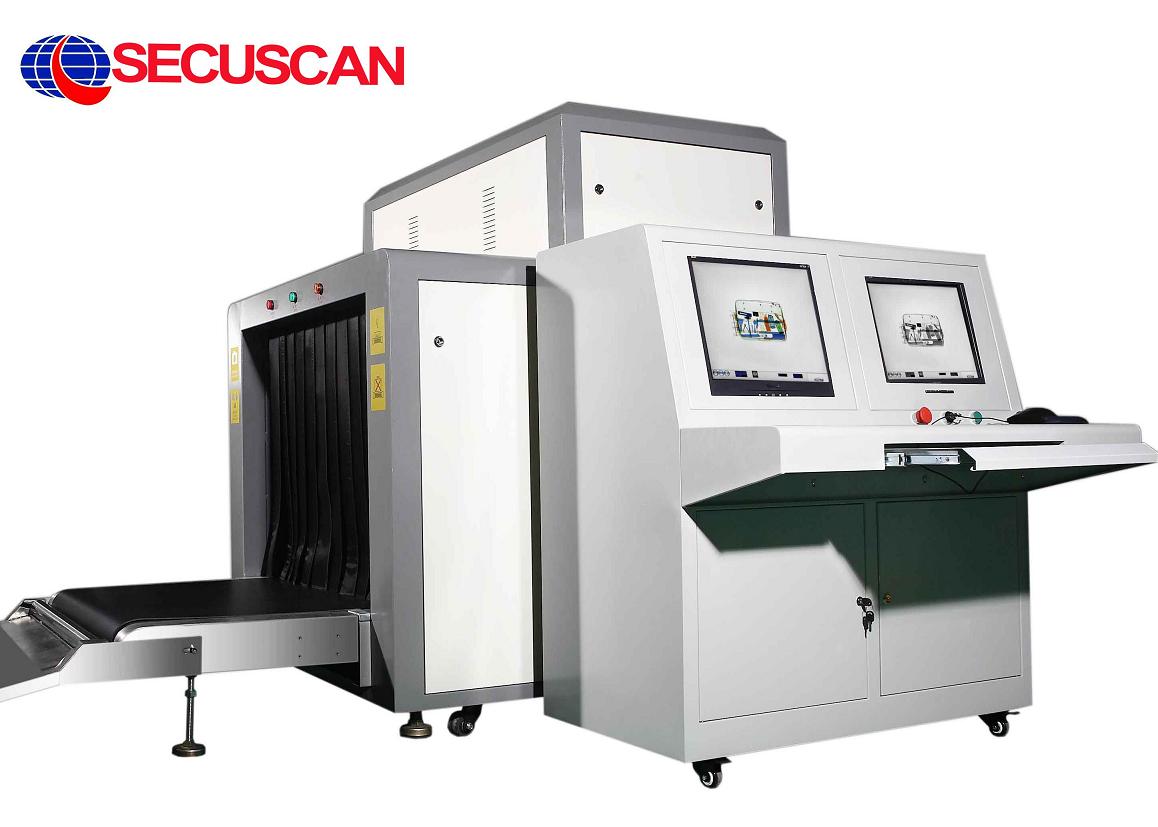

Anti-shock Test X-ray Inspection Security Screening Equipment for Airport



Special for big size baggage inspection scanner model AT8065



Quick detail



General Specification



 Tunnel Size:  800(W)*650(H)mm
 Conveyor Speed:   0.22m/s
 Conveyor Max Load:  200kg
 Wire Resolution:  32AWG to 38AWG
 Spatial resolution:   horizontal:1.3 or 1.0mm,
  vertical: 1.3 or 1.0mm,
 Penetration:  28 to 38mm Steel
 Film Safety:  Guarantee ISO1600 Film
 X-ray Leakage:  <1 μSv/h (at a distance of 5cm
from external housing)
 Pass rate:  720 bags per hour





X-ray Generator





 Beam direction:   Diagonal
 Generate angle:  80 degree
 Anode Voltage:  140Kv or (100Kv to 160Kv adjustable)
 Anode power:  0.4 to 0.5mA
 Cooling / Duty Cycle:  Oil Cooling /100%





Installation Data



 Operation temperature/Humidity:  0℃-45℃/20%-95%(non-condensing)
 Storage Temperature/Humidity:  -20℃-60℃/20%-95%(non-condensing)
 Operation Power:  220VAC(±10%)50±3Hz
 Power Consumption:  1.0 KW (max), 0.7KW(working)
 Noise:  <58db





Image System



 X-ray Sensor:   L-Shaped Photodiode Array
(multi-energetic) , 12bit Deep
 Monitor:   High Resolution Color, LCD Accord, 17 inch
(19 inch optional)
 Image Processing:  Edge enhancement, image
strengthening, image
lightening,, reducing darkening, image returning,
image retrieval.
 Image Grey Level:  4096
 Image Processing:  24bit for processing real time
 Image storage:  Storage 60000 pictures in real time
 Zoom:   max 16 Times Enlarge, Whole screen continuous observation





Advantage:





1 Top Scanning ability
2 Stable and reliable: each machine had strict high and low temperature test, high humidity test, anti-shock test,MTBF 10000 hours
3 Automatic sensor roller (Optional)
4 Upgrade quality solution (Optional)

5 Assist of detecting organic and inorganic items such as
weapons, explosives and narcotics using different colour show





Anti-shock Test X-ray Inspection Security Screening Equipment for AirportAnti-shock Test X-ray Inspection Security Screening Equipment for AirportAnti-shock Test X-ray Inspection Security Screening Equipment for Airport
